Austenitic Stainless Steel Seamless Pipe/Tube

Stainless steel hexagonal seamless pipes/ASTM A312 316L hexagonal pipes

Applications:

Architectural and Structural Design: Used in modern building facades, decorative elements, handrails, and support structures where the hexagonal shape offers aesthetic appeal and structural integrity.
Automotive Industry: Applied in precision components like shafts, fittings, and structural parts requiring unique geometry and resistance to corrosion and wear, especially in high-performance or luxury vehicles.

Mechanical Engineering: Used in custom machinery and equipment requiring non-cylindrical piping, such as hexagonal components for torque transmission or fluid control systems.

Contact Now Catalogue Download

Description

Product material

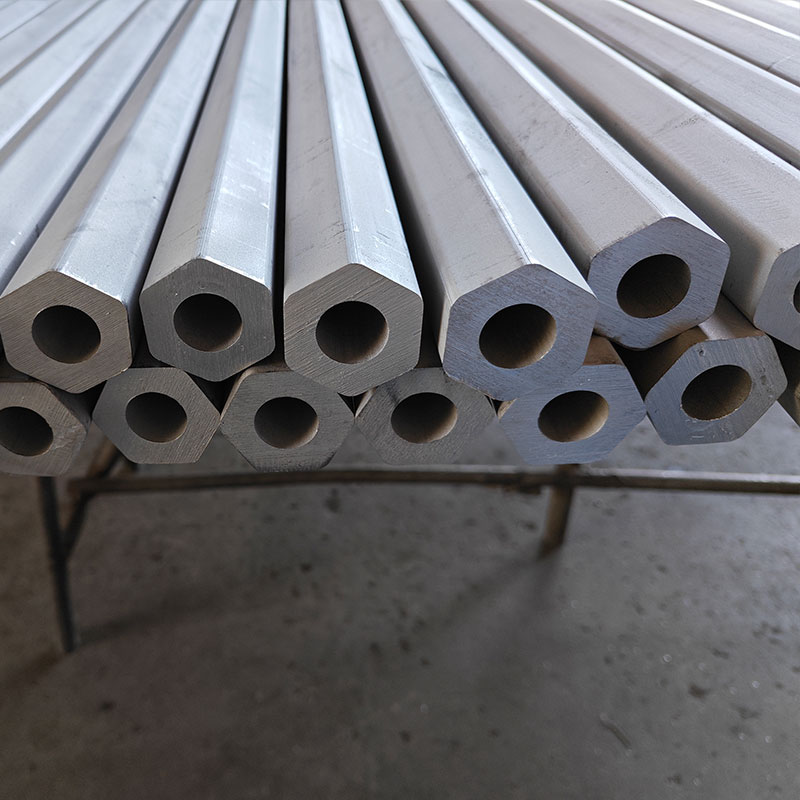

Stainless steel hexagonal pipe is a seamless pipe with an inner circle and outer hexagon, it is made of stainless steel bar as raw materials perforated cold-drawn process produced hexagonal steel pipe, sometimes called as stainless steel shaped pipe. Stainless steel hexagonal seamless pipe has excellent corossion resistance, and good resistance to intergranular corrosion.

One main application is that the pipe is often used to make some hexagonal fittings to replace the use of hexagonal bars, which can save material use and thus save costs.

Regular Grade: TP304L TP316L

316L seamless hexagon pipe chemical composition:

Grade

CHEMICAL COMPOSITION(%)

Mechanical Properties

C(max)

Mn(max)

P(max)

S(max)

Si(max)

Cr

Ni

Mo

N(max)

Cu(max)

Ti

TS,Min(Mpa)

YS, Min(Mpa)

Elongation Longitudinal, min%

TP316/S31600

0.08

2.00

0.045

0.03

1.00

16.0-18.0

11.0-14.0

2.0-3.0

-

-

-

515

205

35

TP316L/S31603

0.035

2.00

0.045

0.03

1.00

16.0-18.0

10.0-14.0

2.0-3.0

-

-

-

485

175

35

TP316Ti/S31635

0.08

2.00

0.045

0.03

0.75

16.0-18.0

10.0-14.0

2.0-3.0

0.1

-

5x(C+N)-0.70

515

205

35

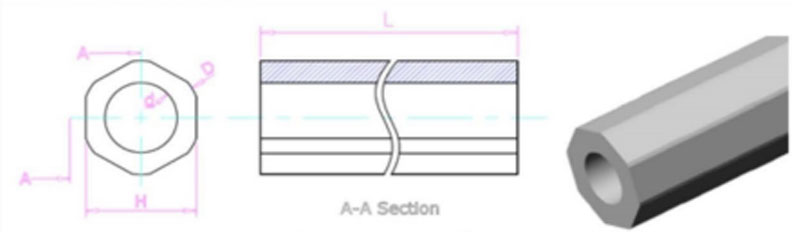

  • Drawing of hexagonal pipe:

  • Regular Size(mm):

    1.A30-H:30 d:17.5 D:33

    2.A36-H:36 d:19 D:40

    3.A46-H:46 d:24 D:51

    Production: Cold drawn /cold rolling

    Length: 3-6meters
