Pipe Fittings and Flanges

Titanium B862 GRADE 2 FITTINGS | ANSI B16.9 90D/45D ELBOWS, TEES, REDUCER, WELDED COLLAR

Applications

Marine and Offshore Industry: Used in seawater piping, desalination plants, and heat exchangers due to its resistance to corrosion and biofouling.

Chemical Processing: Suitable for handling corrosive substances and extreme temperatures in industrial processes.

Power Generation: Applied in condenser and heat exchanger systems for efficient thermal transfer and corrosion resistance.

Industrial Applications: Widely used in piping systems requiring durability, reliability, and resistance to aggressive environments.

Contact Now

Description

Product material

Titanium Grade 2 is a commercially pure titanium known for its excellent corrosion resistance, high strength-to-weight ratio, and biocompatibility. It offers outstanding performance in extreme environments, particularly in applications exposed to seawater, acidic conditions, or high temperatures. This material also provides superior weldability and is widely used in critical industrial and medical applications.

Titanium B862 Grade 2 fittings, manufactured to meet ANSI B16.9 standards, include a range of components such as 90° and 45° elbows, tees, reducers, and welded collars. These fittings are lightweight yet highly durable, making them ideal for systems requiring reliable performance under demanding conditions. With seamless or welded construction options, they are designed to provide precise dimensional accuracy and exceptional corrosion resistance.


Size range:    O.D.：DN15-DN2000； W.T.: 1.5-50mm

Guarantee: 1. The back of bend wall thickness is guarranteed.
2.All BE ends protected by PVC caps, avoid damage.
3.Raw materials of the seamless pipes from big mills

Chemical Composition as per ASTM B862





Grade

CHEMICAL COMPOSITION(%)

C(max)

Оxygen range or max

N(max)

H(max)

Fe range or max

Other Elements,each (max)

Other Elements,total (max)

1

0.08

0.18

0.03

0.015

0.20

0.1

0.4

2/2H

0.08

0.25

0.03

0.015

0.30

0.1

0.4

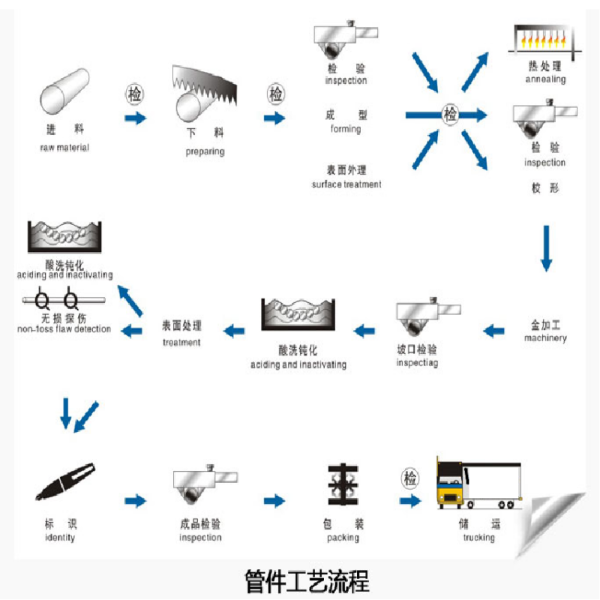

How we produce the Titanium fittings:

About Us

Shanghai Toko Technology Co.,ltd.

Shanghai Toko Technology Co.,ltd. is professional Titanium B862 GRADE 2 FITTINGS | ANSI B16.9 90D/45D ELBOWS, TEES, REDUCER, WELDED COLLAR Suppliers and Titanium B862 GRADE 2 FITTINGS | ANSI B16.9 90D/45D ELBOWS, TEES, REDUCER, WELDED COLLAR Factory, located in Shanghai, China, and has been worked in the field of industrial piping for 11 years. We are committed to manufacturing and exporting stainless steel seamless pipe, stainless steel welded pipes, stainless steel fittings and flanges, nickel alloy products, Titanium seamless and welded tubes, etc. Our factories are all ISO&PED certificated, and the products can be produced in standard ASTM, JIS, DIN, EN, GOST, etc. Our products are widely used in the Oil and Gas, Petrochemical, Sugar Refining, Water Process, Desalination, Geothermal industry etc. We exported to dozens of countries and regions such as USA, Canada, Japan, Germany, France, Korea, Turkey ect.

Our Vision: To be an excellent supplier of global industrial piping system solutions.

Our Mission: To help global industrial pipeline construction with the products made in China.
