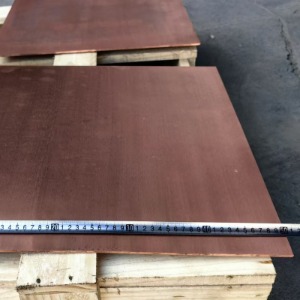

ASTM B152 C10100 TEMPER H03(3/4 HARD) Copper plates/ Heavy wall thickness copper plates /oxygen-free copper Plates

Applications

Electrical Industry: Utilized in bus bars, switchgear, connectors, and electrical conductors where high conductivity is essential.

Thermal Applications: Ideal for heat exchangers, cooling plates, and cryogenic equipment to maximize heat transfer.

Vacuum Technology: Perfect for use in vacuum systems and high-vacuum chambers, ensuring reliable performance under strict conditions.

Aerospace and Defense: Applied in high-performance aerospace components requiring thermal stability and corrosion resistance.

Contact Now

Description

Product material

ASTM B152 C10100 copper plates are made from high-purity oxygen-free copper, containing 99.99% copper content. This material is refined using advanced processes to eliminate oxygen and impurities, ensuring exceptional electrical and thermal conductivity. Its oxygen-free nature provides enhanced resistance to hydrogen embrittlement, making it ideal for high-temperature and vacuum applications.

ASTM B152 C10100 copper plates are made from high-purity oxygen-free copper, ensuring excellent electrical and thermal conductivity. Temper H03 (3/4 Hard) offers a balance between strength and malleability, making these plates suitable for applications requiring durability and precision. The heavy wall thickness versions provide enhanced mechanical properties, making them ideal for demanding environments.

Chemical Composition & Mechanical properties as per ASTM B152



Grade

CHEMICAL COMPOSITION(%)

Cu(min)

O(max)

C10100

99.99

0.0005

A impurity maximums in ppm of C10100 shall ber artimony 4, asenic 5, bismuth 1, cadmium 1, iron 10, lead 5, manganese 0.5, nickel 10, phosphorus 3, selerlum 3, silver 25, sultur 15, tellurium 2, tin 2, and zinc 1.

Tensile Strength Requirements and Approximate Hardness Values (inch-Pound Units)

Temper Designation

Tensile Strength, ksi

Approximate Rockwell Hardness

Code

Name

Min

Max

F Scale

Superficial 30T

H00

Eighth hard

32

40

54-82

Up to 49

H01

Quarter hard

34

42

60-84

18-51

H02

Half hard

37

46

77-89

43-57

H03

Three-quarter-hard

41

50

82-91

47-59

H04

Hard

43

52

86-93

54-62

H06

Extra-hard

47

56

88-95

56-64

H08

Spring

50

58

91-97

60-66

H10

Extra spring

52

-

92 and over

61 and over

Shanghai Toko Technology Co.,ltd is a professional manufacturer of ASTM B152 C10100 TEMPER H03(3/4 HARD) Copper plates/ Heavy wall thickness copper plates /oxygen-free copper Plates, dedicated to ensuring quality and reliability for your industrial applications.
